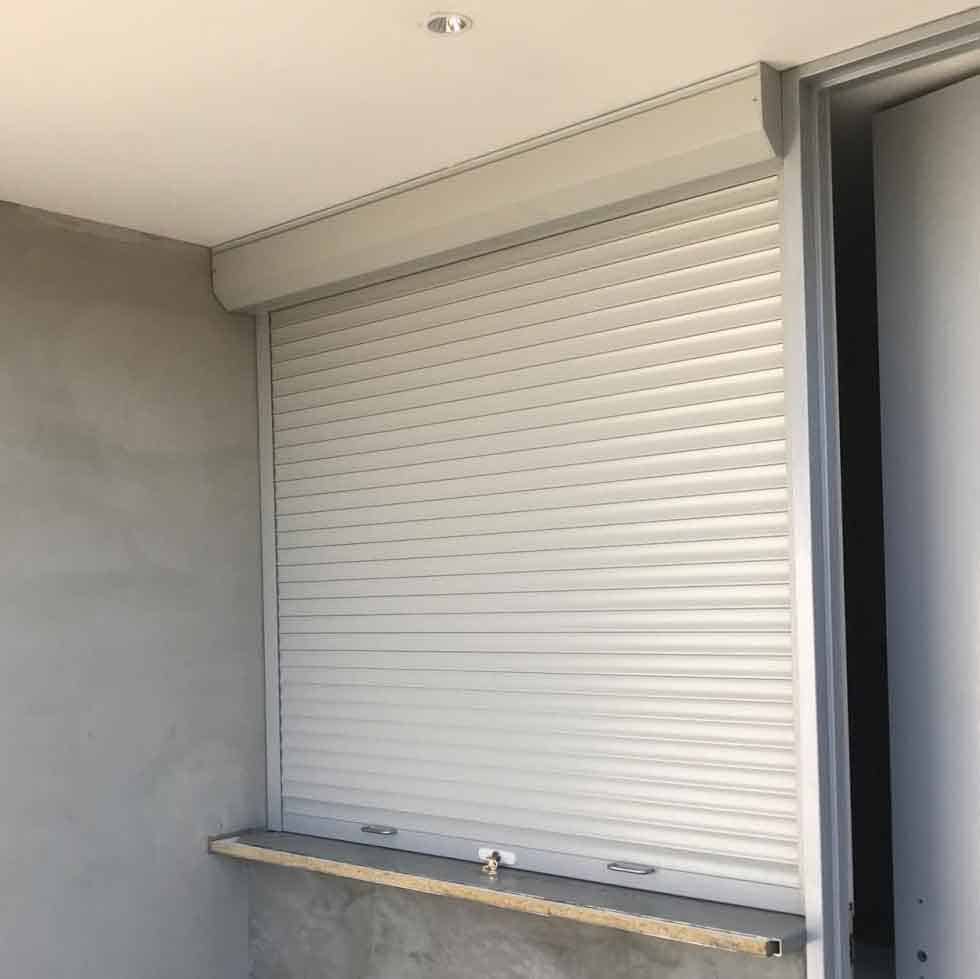

What Separates Manual push pull Roller Shutters From Other Shutter
- Aesthetics: excellent styling Slim pelmet box, 12 top Colorbond colours
- Excellent for: security, and partitioning off areas
- Good for: areas with not much bulkhead space
- Other shutters to consider: slimline roller shutters, Fortress roller shutters
Important Details
- Maximum Height: 3600mm
- Maximum Width: 3600mm

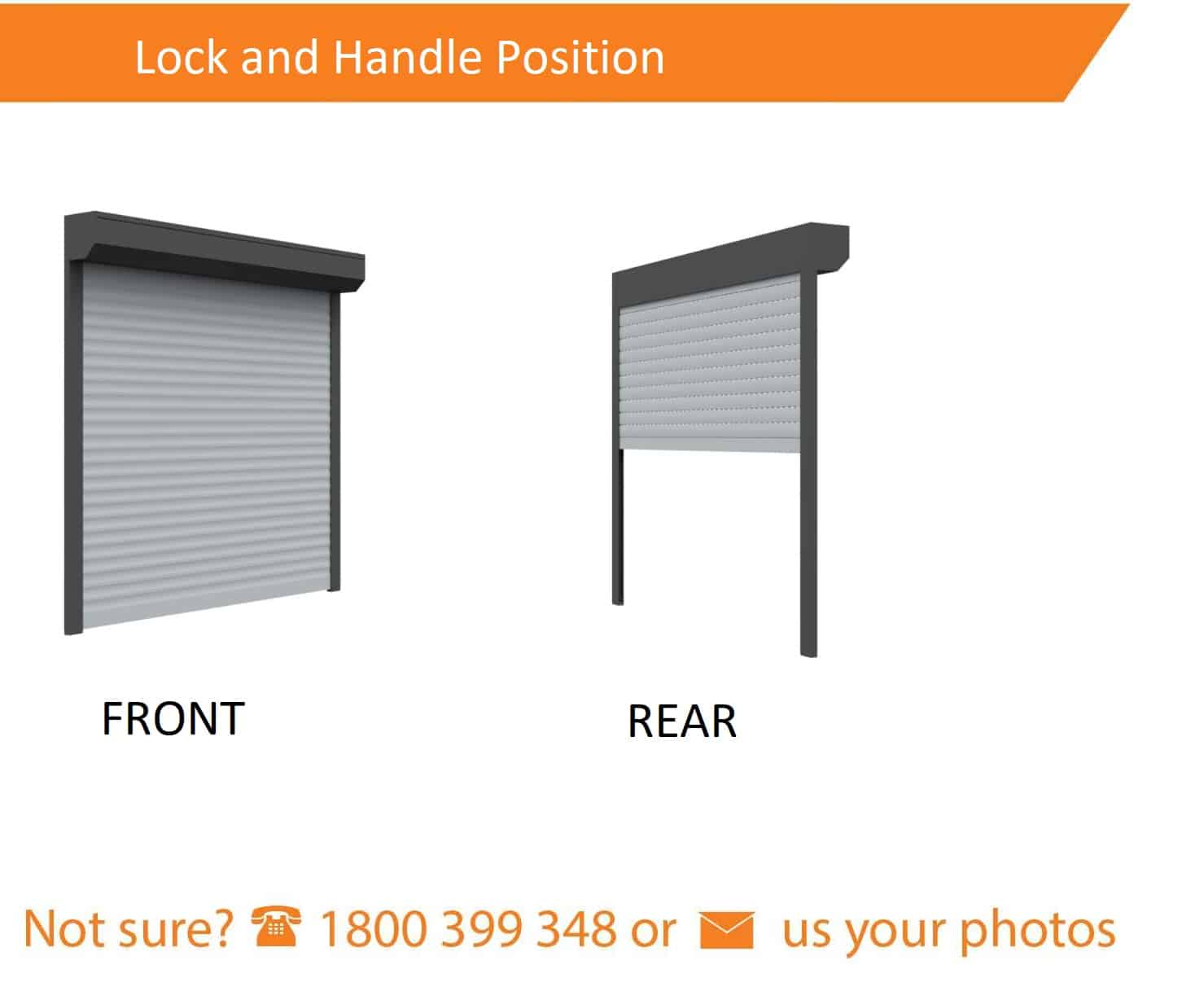

- Shutter locks, shutter stops, protective side plates.
- 45mm Aluminium Interlocking slats
- Full specifications in the table below
Benefits
- Up to 80% noise reduction
- Up to 15° cooler in summer
- Up to 15° warmer in winter
- Up to 98% light block out
- Up to 40% more energy efficient
- Secure, built-in locking mechanism
- Eliminates condensation
- Reduces glare
- Rust prevention: 95% components aluminium
Shutter Details
Shutter Specification
- Maximum Height: 3600mm
- Maximum Width: 3600mm
- Security locks
- Shutter stops
- Shutter guide Securing points at 300-400mm intervals
- Pelmet box securing points at 800mm intervals
- ~ 54 mm x 22 mm x 1.2 mm aluminium shutter guides
- ~ 70 mm x 23 mm x 2.5 mm Heavy Duty aluminum shutter guides (optional)
- ~ 52 mm x 8 mm x 1.1 mm bottom rail
- Protective side plates
- Shutter Protection axle rings
- Foam pad shutter springs
- 57mm x 2.1mm aluminium axle Heavy Duty
- Stainless Steel Bearings for axle idler
- Heavy duty Nylon Axle idler
- Weight per sq metre 3.8kg
Major Components
Shutter Profile
- Type – 45 mm x 9 mm x 0.33 mm Aluminium Interlocking slats
- Insulation – Polyurethane filled
- Brand – Pracal
- Country of origin – Italy
- Gauge – 0.33mm

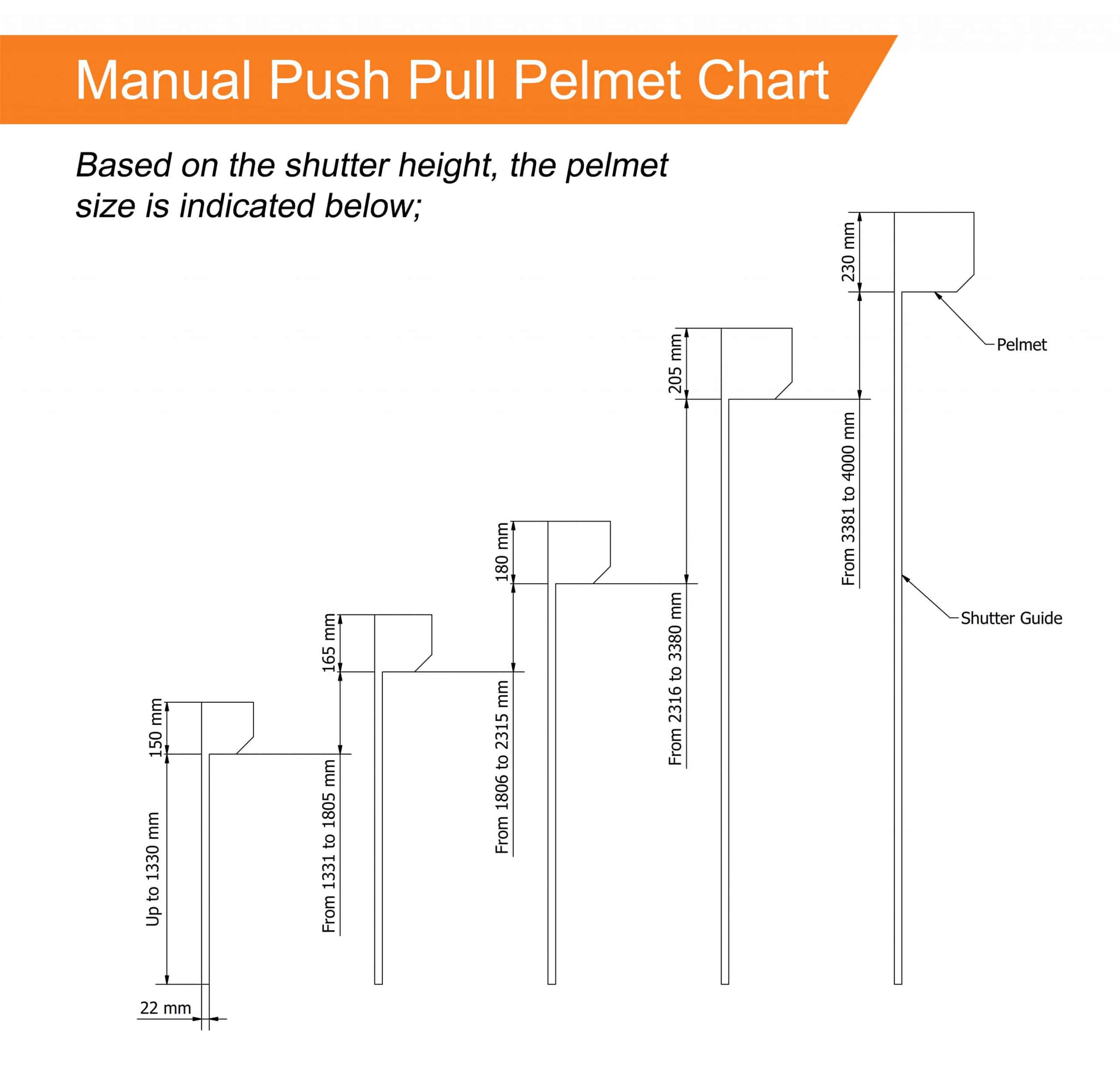

Pelmet
- Type – .78 mm Aluminium
- Brand – Expalum
- Country of origin – Spain
Tension Spring
- Easy to push up and pull down
- Counter weight spring tensioning system
- Equal load through up and down cycle
Applications
Applications
- Doors
- Doorways
- Counters
- Windows
- Bars
- Roof windows
- Built in wardrobes
- Canteens
- Pergolas
- Verandas
- Cabanas
- carports
- Bay Windows
- Garden Windows
- Curved Windows
- Atriums
- Patios
- Closets
- Cupboards
- Partitioning Areas
- Room Dividers
What they offer
What they offer
- Security for Medium to High risk areas
- Noise reduction for High noise areas
- Great protection against heat, cold
- Medium to High protection for windy areas
- Excellent for peninsula seafronts
- Internal or external installation
Manual push pull Roller Shutters are Suitable for
- Residential homes
- Council Pavilions
- Shopfronts
- Offices
- Factories
- Apartments
- Flats
- Units
- Townhouses
- Multi storey buildings
- Portable buildings
- Trucks
- Vans
- Caravans
Colours
Additional Information
Prices:
All rates include GST, as well as shipping charges where these are not indicated separately.
Note: Discounts and/or free product offers do not apply to products purchased before or after the specified promotional period.
Placing Your Order:
The order process through our online shop consists of several steps. First, you select the desired goods by following the measure instructions or visiting How to Measure page on the website. Next, you must provide your measurements and other order data, including the billing address and delivery address (if different). As a next step, you must select the payment method. Finally, you have the option of checking all the information provided (e.g. name, address, payment method, ordered goods) and correcting it if required before sending us your order by clicking “Purchase”.
We will process your order and assign an estimated delivery date upon receipt of the information.
Please note that production lead times commence only when we have received the full payment. It is the customers responsibility to ensure this is paid in a timely manner.
Delivery Conditions:
Areas that are non Major Cities in the structure, or some properties/farms may incur delays in delivery.
Public holidays, Easter, and Christmas can extend the delivery times by 15-20 working days.
Any roller shutter that exceeds a width or height of 2200mm, or weighs more than 24kg, necessitates a commercial delivery address with a forklift access; Alternatively, it can be collected from the nearest depot.
Wiring AC Electrical Motors:
AC Electric motors need to be wired into the mains of the property by a fully qualified electrician. It is the customer’s responsibility to make sure this is done by a registered and qualified electrician.
Warranty Terms:
Visit Warranty page on the website for more information.
Related products

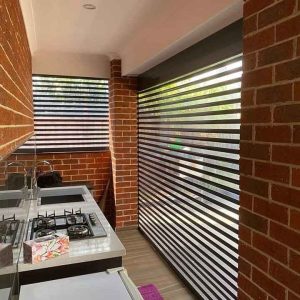

Get security with style with our Polycarbonate Roller Shutters. They are excellent for domestic alfrescos, patios as well as internal counter tops and internal serveries.

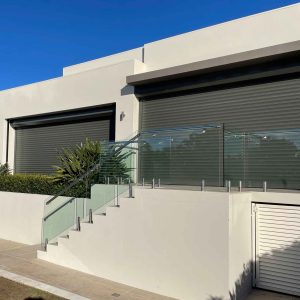

This max span aluminium roller shutter is an ideal roller shutter for residential and commercial applications with wide openings. Excellent for garage doors, patios and alfrescos.

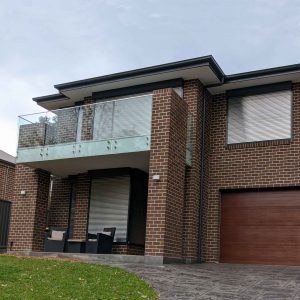

Australia’s first BAL FZ roller shutters are available to purchase online. CISRO rated and tested in accordance with AS 1530.8.2-2018
This aluminium roller shutter is great for residential and light commercial applications. Excellent for patios, alfresco and garage doors.
This is the most popular premium residential roller shutter in our range it is the most compact and neatest looking and most secure residential roller shutter it also has the title of Australia’s best looking roller shutter

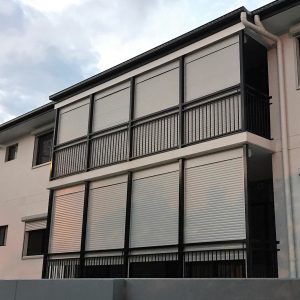

Cyclone Rated roller shutter for high wind location, patios and alfrescos.

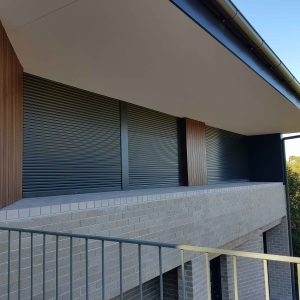

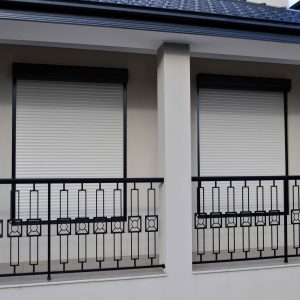

These roller shutters are specific for bushfire prone areas that request Bal 40 rating and come with a certificate of compliance

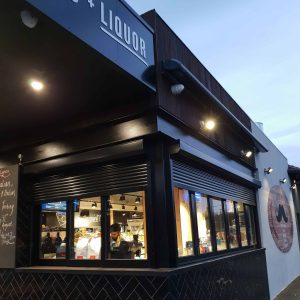

Formally known as Titan Roller Shutters These Aluminium roller shutters offer very high security for commercial and residential applications that is still very compact and available in our 8 excellent colour range
