- Description
- Shutter Details
- Major Components
- Applications
- What they offer
- Colours
- Additional Information
Cyclonic Rating
- Category 3, Region C Cyclone Rating
- Tested at Cyclone Testing Station, James Cook University QLD
- Tested for wind-speed up to 47 meters per seconds (169.2 km/h)
- Tested for wind pressure up to 2.50 kPa
Important Details
- Maximum Height: 3600mm
- Maximum Width: 4200mm
- Shutter locks, shutter stops, protective side plates
- 45mm Aluminium Interlocking slats
- Full specifications in the table below
What seperates Cyclone shutters from other shutters
- Aesthetics: excellent styling Slim pelmet box, 8 top colours
- Excellent for:home security, light blocking, noise reduction, climate control, energy savings,
- Good for:glare reduction light control and light blocking
- Other shutters to consider : there nothing in same class of roll formed insulated shutters
Benefits
- Up to 80% noise reduction
- Up to 15° cooler in summer
- Up to 15° warmer in winter
- Up to 98% light block out
- Up to 40% more energy efficient
- Secure, built-in locking mechanism
- Eliminates condensation
- Reduces glare
- Rust prevention: 95% components aluminium
Shutter Details
Shutter Specification
- Maximum Height: 3600mm
- Maximum Width: 3600mm
- Security locks
- Shutter stops
- Shutter guide Securing points at 300-400mm intervals
- Pelmet box securing points at 800mm intervals
- ~ 52 mm x 8 mm x 1.1 mm bottom rail
- Protective side plates
- Shutter Protection axle rings
- Foam pad shutter springs
- 57mm x 2.1mm aluminium axle Heavy Duty
- Stainless Steel Bearings for axle idler
- Heavy duty Nylon Axle idler
Major Components
Shutter Profile
- Type – 40 mm Aluminium Interlocking slats
- High Density Insulation – Polyurethane filled
Pelmet
- Type – .78 mm Aluminium
- Brand – Expalum
- Country of origin – Spain
Electric Motor
- Type – 230 volt mains tubular
- Brand – ASA
- Country of origin – Italy
Applications
Applications
- Doors
- Doorways
- Counters
- Windows
- Bars
- Roof windows
- Built in wardrobes
- Canteens
- Pergolas
- Verandas
- Cabanas
- carports
- Bay Windows
- Garden Windows
- Curved Windows
- Atriums
- Patios
- Closets
- Cupboards
- Partitioning Areas
- Room Dividers
What they offer
What they offer
- Security for Medium to High risk areas
- Noise reduction for High noise areas
- Great protection against heat, cold
- Medium to High protection for windy areas
- Excellent for peninsula seafronts
- Internal or external installation
Cyclone Shutters are Suitable for
- Residential homes
- Council Pavilions
- Shopfronts
- Offices
- Factories
- Apartments
- Flats
- Units
- Townhouses
- Multi storey buildings
- Portable buildings
- Trucks
- Vans
- Caravans

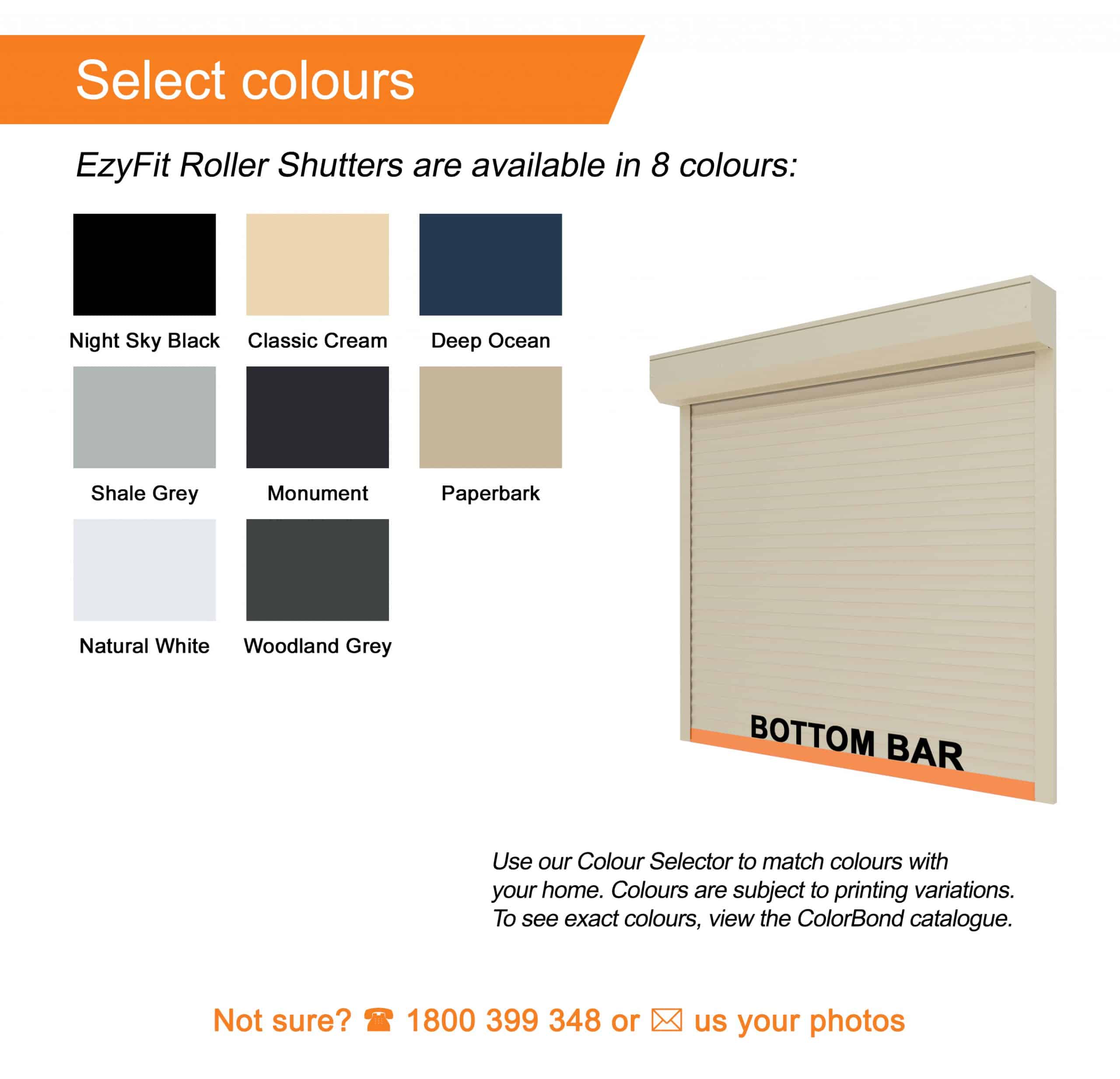

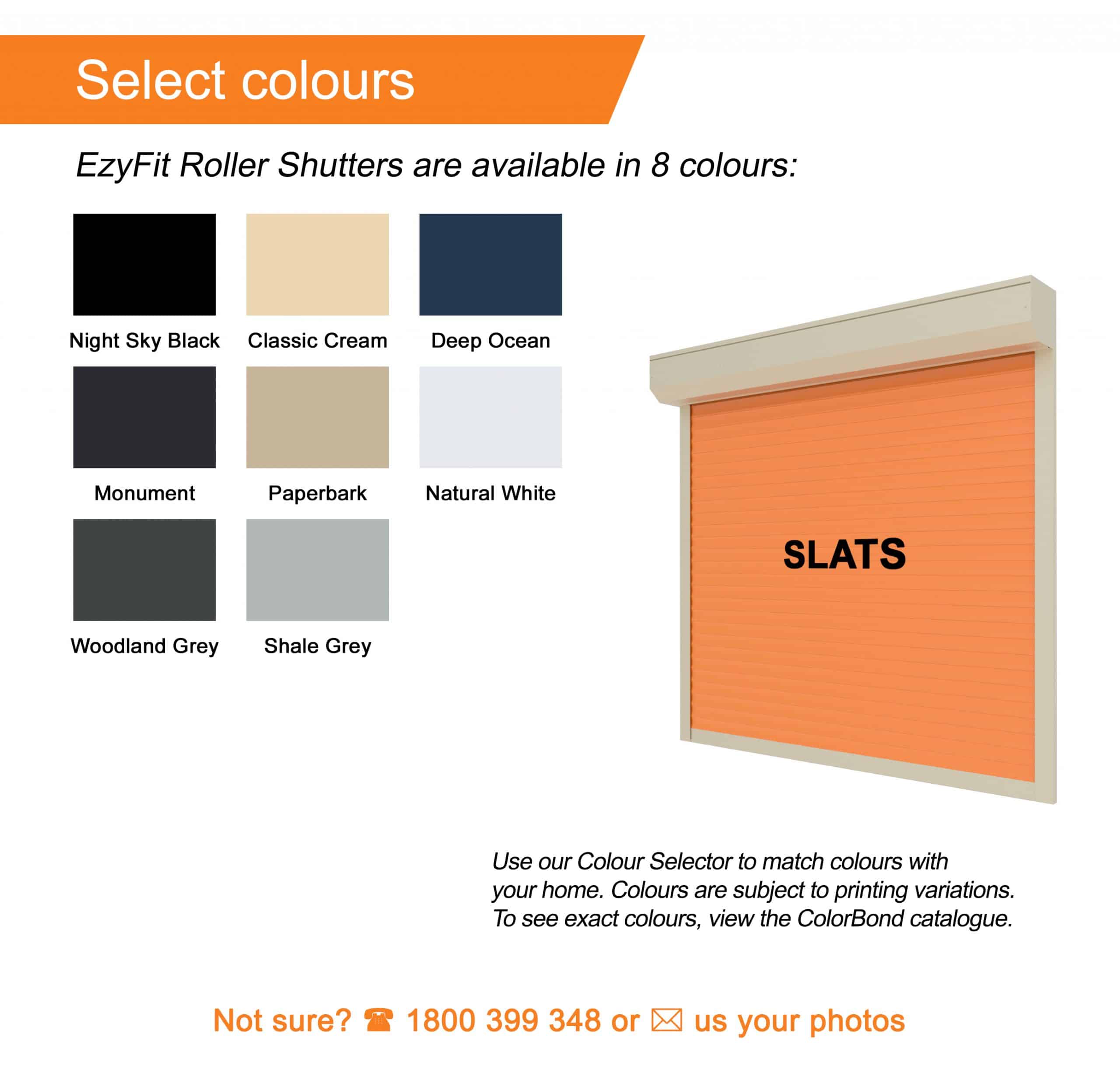

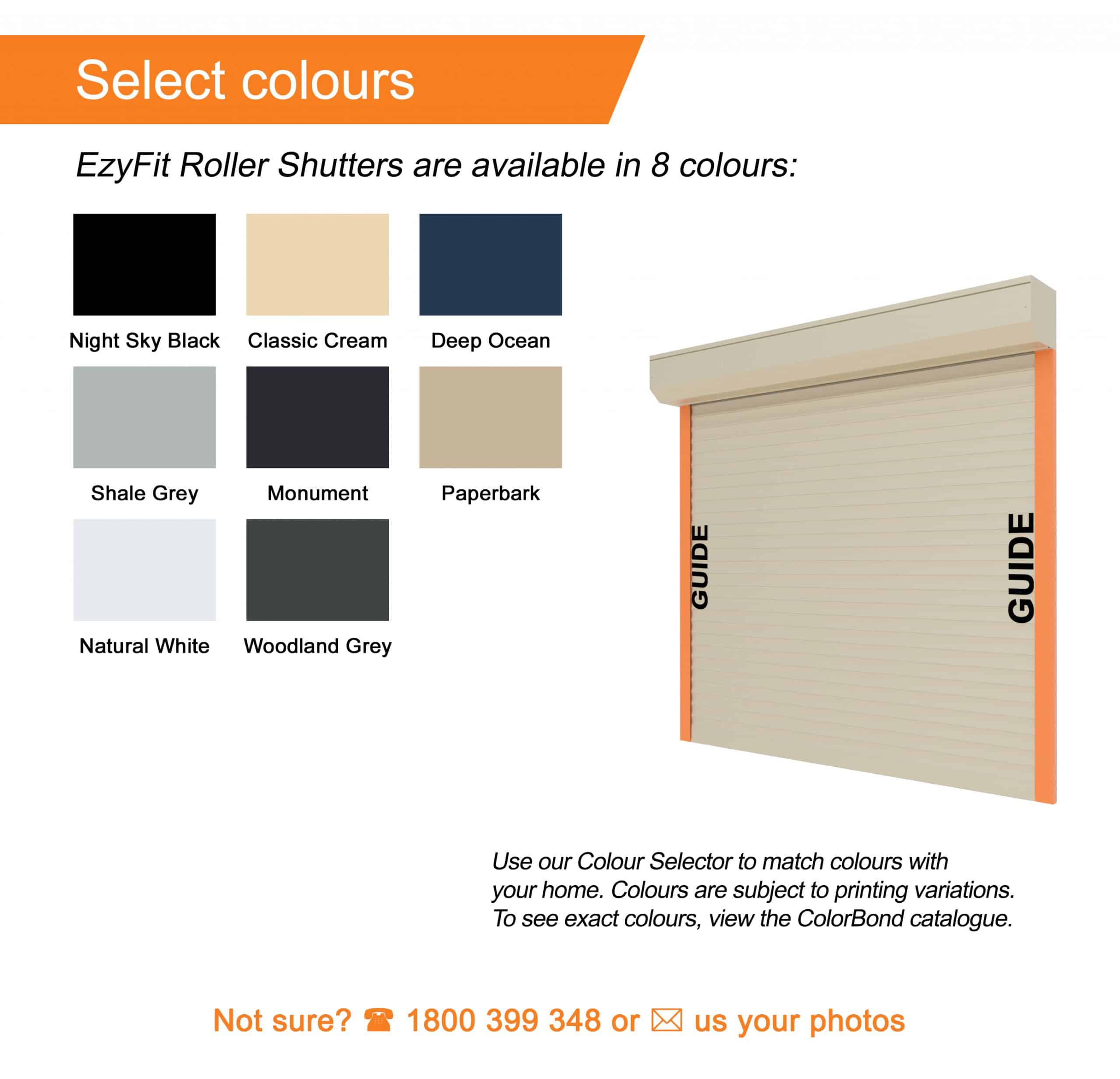

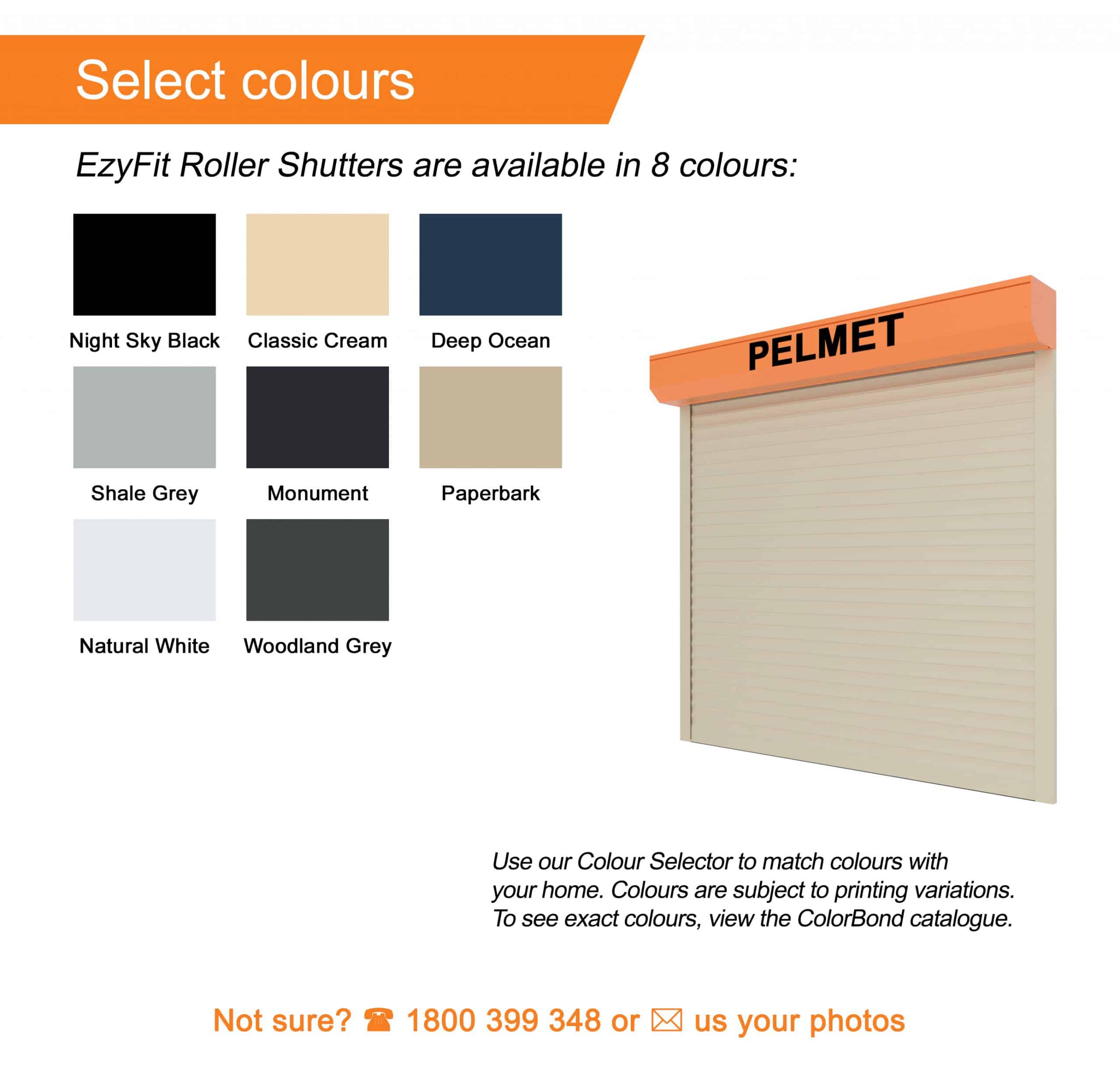

Colours
Additional Information
Prices:
All rates include GST, as well as shipping charges where these are not indicated separately.
Note: Discounts and/or free product offers do not apply to products purchased before or after the specified promotional period.
Placing Your Order:
The order process through our online shop consists of several steps. First, you select the desired goods by following the measure instructions or visiting How to Measure page on the website. Next, you must provide your measurements and other order data, including the billing address and delivery address (if different). As a next step, you must select the payment method. Finally, you have the option of checking all the information provided (e.g. name, address, payment method, ordered goods) and correcting it if required before sending us your order by clicking “Purchase”.
We will process your order and assign an estimated delivery date upon receipt of the information.
Please note that production lead times commence only when we have received the full payment. It is the customers responsibility to ensure this is paid in a timely manner.
Delivery Conditions:
Areas that are non Major Cities in the structure, or some properties/farms may incur delays in delivery.
Public holidays, Easter, and Christmas can extend the delivery times by 15-20 working days.
Any roller shutter that exceeds a width or height of 2200mm, or weighs more than 24kg, necessitates a commercial delivery address with a forklift access; Alternatively, it can be collected from the nearest depot.
Wiring AC Electrical Motors:
AC Electric motors need to be wired into the mains of the property by a fully qualified electrician. It is the customer’s responsibility to make sure this is done by a registered and qualified electrician.
Warranty Terms:
Visit Warranty page on the website for more information.
